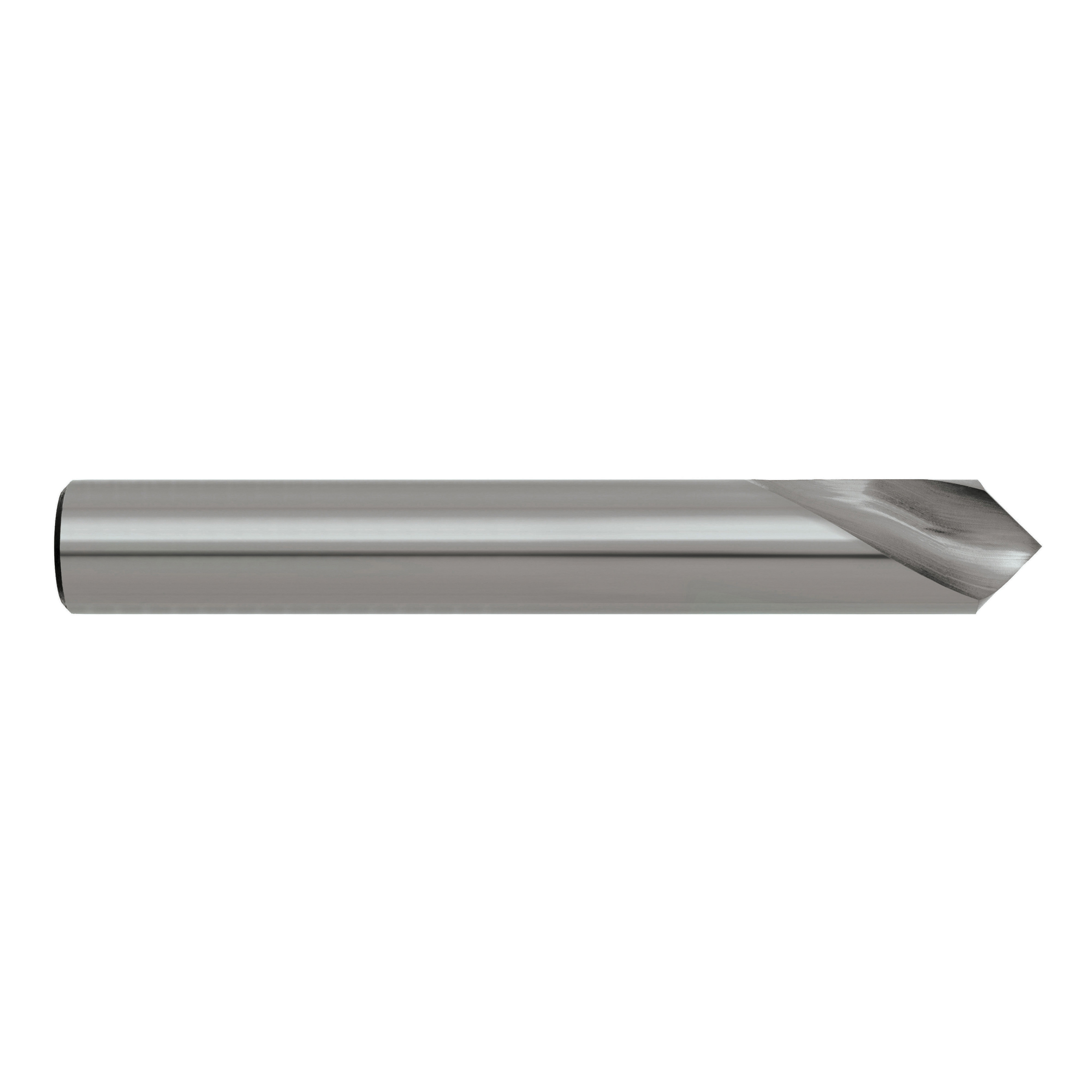

Spotting Drills – Carbide – 90°
D355Drills, Carbide, Spotting
Rigid design for “seat” position accuracy
90° offers hole chamfering & spotting with the one tool
142° for spotting, matching a typical carbide drill point
Only drill to the depth of the point
Item #
Diameter d1 (mm)
Length l1 (mm)
Length l2 (mm)
Diameter d2 (mm)
Info
D3550300
3.00
46
9
3
- Pack Qty: 1
- Barcode: 9311963583341
- Order Multiple: 1
D3550300
D3550400
4.00
55
12
4
- Pack Qty: 1
- Barcode: 9311963583358
- Order Multiple: 1
D3550400
D3550500
5.00
62
15
5
- Pack Qty: 1
- Barcode: 9311963515762
- Order Multiple: 1
D3550500
D3550600
6.00
66
18
6
- Pack Qty: 1
- Barcode: 9311963515779
- Order Multiple: 1
D3550600
D3550800
8.00
79
23
8
- Pack Qty: 1
- Barcode: 9311963515786
- Order Multiple: 1
D3550800
D3551000
10.00
89
24
10
- Pack Qty: 1
- Barcode: 9311963515793
- Order Multiple: 1
D3551000
D3551200
12.00
102
24
12
- Pack Qty: 1
- Barcode: 9311963516165
- Order Multiple: 1
D3551200
D3551600
16.00
115
26
16
- Pack Qty: 1
- Barcode: 9311963516868
- Order Multiple: 1
D3551600
D3552000
20.00
131
35
20
- Pack Qty: 1
- Barcode: 9311963516875
- Order Multiple: 1
D3552000
- Drills, Carbide, Spotting
- Rigid design for “seat” position accuracy
- 90° offers hole chamfering & spotting with the one tool
- 142° for spotting, matching a typical carbide drill point
- Only drill to the depth of the point
ISO | VDI | Description | Condition | Hardness | Strength | Optimal |
---|---|---|---|---|---|---|
P | 1 | Steel - Non-alloy, cast & free cutting (~ 0.15 %C) | Annealed | 125HB | 440MPa | |
P | 2 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Annealed | 190HB | 640MPa | |
P | 3 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Quenched & Tempered | 250MPa | 840MPa | |
P | 4 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Annealed | 270MPa | 910MPa | |
P | 5 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Quenched & Tempered | 300MPa | 1010MPa | |
P | 6 | Steel - Low alloy & cast < 5% of alloying elements | Annealed | 180HB | 610MPa | |
P | 7 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 275MPa | 930MPa | |
P | 8 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 300MPa | 1010MPa | |
P | 9 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 350HB | 1180MPa | |
P | 10 | Steel - High alloy, cast & tool | Annealed | 200MPa | 680MPa | |
P | 11 | Steel - High alloy, cast & tool | Hardened & Tempered | 325HB | 1100MPa | |
P | 12 | Steel - Corrosion resistant & cast - Ferritic / Martensitic | Annealed | 200HB | 680MPa | |
P | 13 | Steel - Corrosion resistant & cast - Martensitic | Quenched & Tempered | 240HB | 810MPa | |
M | 14.1 | Stainless Steel - Austenitic | Age Hardened | 180MPa | 610MPa | |
M | 14.2 | Stainless Steel - Duplex | 250MPa | 840MPa | ||
M | 14.3 | Stainless Steel - Precipitation Hardening | 250MPa | 840MPa | ||
K | 15 | Cast Iron, Grey (GG) - Ferritic / Pearlitic | 180MPa | 610MPa | ||
K | 16 | Cast Iron, Grey (GG) - Pearlitic | 260MPa | 880MPa | ||
K | 17 | Cast Iron, Nodular (GGG) - Ferritic | 160MPa | 570MPa | ||
K | 18 | Cast Iron, Nodular (GGG) - Pearlitic | 250MPa | 840MPa | ||
K | 19 | Cast Iron, Malleable - Ferritic | 130MPa | 460MPa | ||
K | 20 | Cast Iron, Malleable - Pearlitic | 230MPa | 780MPa | ||
N | 21 | Aluminum & Magnesium, wrought alloy - Non Heat Treatable | 60MPa | 210MPa | ||
N | 22 | Aluminum & Magnesium, wrought alloy - Heat Treatable | Age Hardened | 100MPa | 360MPa | |
N | 23 | Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable | 75MPa | 270MPa | ||
N | 24 | Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable | Age Hardened | 90MPa | 320MPa | |
N | 25 | Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable | 130MPa | 460MPa | ||
N | 26 | Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% | 110MPa | 390MPa | ||
N | 27 | Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) | 90MPa | 320MPa | ||
N | 28 | Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) | 100MPa | 360MPa | ||
N | 29 | Non-metallic - Thermosetting & fiber-reinforced plastics | ||||
N | 30 | Non-metallic - Hard rubber, wood etc. | ||||
S | 31 | High temperature alloys - Fe based | Annealed | 200HB | 680MPa | |
S | 32 | High temperature alloys - Fe based | Age Hardened | 280HB | 950MPa | |
S | 33 | High temperature alloys - Ni / Co based | Annealed | 250HB | 840MPa | |
S | 34 | High temperature alloys - Ni / Co based | Age Hardened | 350HB | 1180MPa | |
S | 35 | High temperature alloys - Ni / Co based | Cast | 320HB | 1080MPa | |
S | 36 | Titanium & Titanium alloys - CP Titanium | 400MPa | |||
S | 37.1 | Titanium & Titanium alloys - Alpha alloys | 860MPa | |||
S | 37.2 | Titanium & Titanium alloys - Alpha / Beta alloys | Annealed | 960MPa | ||
S | 37.3 | Titanium & Titanium alloys - Alpha / Beta alloys | Age Hardened | 1170MPa | ||
S | 37.4 | Titanium & Titanium alloys - Beta alloys | Annealed | 830MPa | ||
S | 37.5 | Titanium & Titanium alloys - Beta alloys | Age Hardened | 1400MPa | ||
H | 38.1 | Hardened steel | Hardened & Tempered | 45HRC | ||
H | 38.2 | Hardened steel | Hardened & Tempered | 55 | ||
H | 39.1 | Hardened steel | Hardened & Tempered | 58 | ||
H | 39.2 | Hardened steel | Hardened & Tempered | 62 | ||
H | 40 | Cast Iron - Chilled | Cast | 400MPa | 1350MPa | |
H | 41 | Cast Iron | Hardened & Tempered | 55 |
KEY
Designation
N
Material
VHM
Finish
Brt
Shank Form
HA
Point Tolerance
h6
Shank Tolerance
h9
Point Angle
90°
Point Form
Form A
No of Cutting Edges
ul
Standard
DIN1897
